<Grid>

A robust grid implementation with multiple tweakable parameters.

Show Code

• App.svelte
• Scene.svelte

<script lang="ts">
  import Scene from './Scene.svelte'
  import { Canvas, T } from '@threlte/core'
  import { Checkbox, Color, Folder, Pane, List, Slider } from 'svelte-tweakpane-ui'
  import { Grid, TransformControls } from '@threlte/extras'
  import { PlaneGeometry, Vector3 } from 'three'
  import { SimplexNoise } from 'three/examples/jsm/Addons.js'

  let cellSize = $state(1)
  let cellColor = $state('#cccccc')
  let cellThickness = $state(1.4)
  let sectionSize = $state(5)
  let sectionColor = $state('#ff3e00')
  let sectionThickness = $state(2)

  let gridSize = $state<[number, number]>([20, 20])
  const planeOptions = {
    xz: 'xz',
    xy: 'xy',
    zy: 'zy'
  }
  let plane: keyof typeof planeOptions = $state('xz')

  let followCamera = $state(false)
  let infiniteGrid = $state(false)
  let useFadeOrigin = $state(false)
  let fadeOrigin = $state(new Vector3())
  let fadeDistance = $state(100)
  let backgroundColor = $state('#003eff')
  let backgroundOpacity = $state(0)
  let fadeStrength = $state(1)
  const gridGeometryOptions = {
    plane: 'default',
    terrain: 'terrain'
  }

  let gridGeometry = $state('default')
  const gridGeometryIsTerrain = $derived(gridGeometry === 'terrain')

  const gridTypeOptions = {
    polar: 'polar',
    grid: 'grid',
    lines: 'lines',
    circular: 'circular'
  }
  let gridType: keyof typeof gridTypeOptions = $state('polar')

  const linesAxisOptions = {
    x: 'x',
    y: 'y',
    z: 'z'
  }
  let linesAxis: keyof typeof linesAxisOptions = $state('x')

  let maxRadius = $state(10)
  let cellDividers = $state(6)
  let sectionDividers = $state(2)

  const terrainSize = 30
  const segments = 100
  const noise = new SimplexNoise()
  const geometry = new PlaneGeometry(terrainSize, terrainSize, segments, segments)
  const positions = geometry.getAttribute('position')
  for (let i = 0; i < positions.count; i += 1) {
    const x = positions.getX(i)
    const y = positions.getY(i)
    const height = noise.noise(x / 5, y / 5) * 1 + noise.noise(x / 40, y / 40) * 2
    positions.setZ(i, height)
  }
  geometry.computeVertexNormals()
</script>

<Pane
  title="Grid"
  position="fixed"
>
  <Folder title="Cells">
    <Slider
      bind:value={cellSize}
      label="size"
      step={1}
      min={1}
      max={5}
    />
    <Color
      bind:value={cellColor}
      label="color"
    />
    <Slider
      bind:value={cellThickness}
      label="thickness"
      step={0.1}
      min={1}
      max={10}
    />
  </Folder>
  <Folder title="Sections">
    <Slider
      bind:value={sectionSize}
      label="size"
      step={1}
      min={1}
      max={50}
    />
    <Color
      bind:value={sectionColor}
      label="color"
    />
    <Slider
      bind:value={sectionThickness}
      label="thickness"
      step={0.1}
      min={1}
      max={10}
    />
  </Folder>
  <Folder title="General">
    <Slider
      bind:value={gridSize[0]}
      label="size 1"
      step={1}
      min={1}
      max={100}
    />
    <Slider
      bind:value={gridSize[1]}
      label="size 2"
      step={1}
      min={1}
      max={100}
    />
    <List
      bind:value={plane}
      label="plane"
      options={planeOptions}
    />
    <Checkbox
      bind:value={followCamera}
      label="follow camera"
    />
    <Checkbox
      bind:value={infiniteGrid}
      label="infinite Grid"
    />
    <Checkbox
      bind:value={useFadeOrigin}
      label="use fade origin"
    />
    <Slider
      bind:value={fadeDistance}
      label="fade distance"
      step={10}
      min={10}
      max={400}
    />
    <Color
      bind:value={backgroundColor}
      label="background color"
    />
    <Slider
      bind:value={backgroundOpacity}
      label="background opacity"
      step={0.01}
      min={0}
      max={1}
    />
    <Slider
      bind:value={fadeStrength}
      label="fade strength"
      step={0.1}
      min={0}
      max={20}
    />
    <List
      bind:value={gridGeometry}
      options={gridGeometryOptions}
      label="grid geometry"
    />
  </Folder>
  <Folder title="Types of Grid">
    <List
      bind:value={gridType}
      options={gridTypeOptions}
      label="type"
    />
    {#if gridType == 'lines'}
      <List
        bind:value={linesAxis}
        options={linesAxisOptions}
        label="axis"
      />
    {/if}
    {#if gridType == 'polar' || gridType == 'circular'}
      <Slider
        bind:value={maxRadius}
        label="max radius"
        step={1}
        min={0}
        max={15}
      />
    {/if}
    {#if gridType == 'polar'}
      <Slider
        bind:value={cellDividers}
        label="cell dividers"
        step={1}
        min={0}
        max={18}
      />
      <Slider
        bind:value={sectionDividers}
        label="section dividers"
        step={1}
        min={0}
        max={18}
      />
    {/if}
  </Folder>
</Pane>

<div>
  <Canvas>
    {#if useFadeOrigin}
      <TransformControls
        onobjectChange={(e) => {
          fadeOrigin = e.target.object.position.clone()
        }}
      />
    {/if}
    {#if gridGeometryIsTerrain}
      <Grid
        position.y={-2}
        {plane}
        {cellColor}
        {cellSize}
        {cellThickness}
        {sectionColor}
        {sectionSize}
        {sectionThickness}
        {followCamera}
        {infiniteGrid}
        {fadeDistance}
        {fadeStrength}
        fadeOrigin={useFadeOrigin ? fadeOrigin : undefined}
        {gridSize}
        {backgroundColor}
        {backgroundOpacity}
        type={gridType}
        axis={linesAxis}
        {maxRadius}
        {cellDividers}
        {sectionDividers}
      >
        <T is={geometry} />
      </Grid>
    {:else}
      <Grid
        {plane}
        {cellColor}
        {cellSize}
        {cellThickness}
        {sectionColor}
        {sectionSize}
        {sectionThickness}
        {followCamera}
        {infiniteGrid}
        {fadeDistance}
        {fadeStrength}
        fadeOrigin={useFadeOrigin ? fadeOrigin : undefined}
        {gridSize}
        {backgroundColor}
        {backgroundOpacity}
        type={gridType}
        axis={linesAxis}
        {maxRadius}
        {cellDividers}
        {sectionDividers}
      />
    {/if}

    <Scene />
  </Canvas>
</div>

<style>
  div {
    height: 100%;
  }
</style>

<script lang="ts">
  import { BoxGeometry, Vector2 } from 'three'
  import { Gizmo, OrbitControls } from '@threlte/extras'
  import { T } from '@threlte/core'

  const positions: Vector2[] = []
  const count = 4
  for (let j = 0; j < count; j += 1) {
    for (let i = 0; i < count; i += 1) {
      positions.push(new Vector2(i, j).multiplyScalar(2).subScalar(3))
    }
  }
</script>

<T.PerspectiveCamera
  makeDefault
  position={15}
  fov={60}
>
  <OrbitControls>
    <Gizmo />
  </OrbitControls>
</T.PerspectiveCamera>

<!-- Make a box in every second cell to show aligment -->
{#each positions as { x, y }}
  <T.Group position={[x, 0.5, y]}>
    <T.Mesh>
      <T.BoxGeometry />
      <T.MeshBasicMaterial
        color="white"
        opacity={0.9}
        transparent
      />
    </T.Mesh>
    <T.LineSegments>
      <T.EdgesGeometry args={[new BoxGeometry()]} />
      <T.LineBasicMaterial
        color="black"
        linewidth={2}
      />
    </T.LineSegments>
  </T.Group>
{/each}

Usage

This component provides sensible defaults. You can initialize the default grid with just <Grid>. ref passes a reference from the <T.Mesh/> the grid is constructed on.

Grid types

The grid type can be selected by setting the type parameter. The available grid types are:

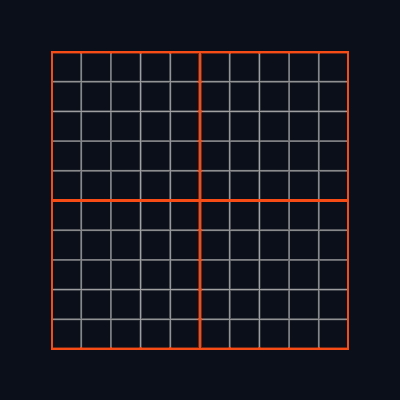

• grid: represents a standard box grid. It does not require any additional properties. (default)

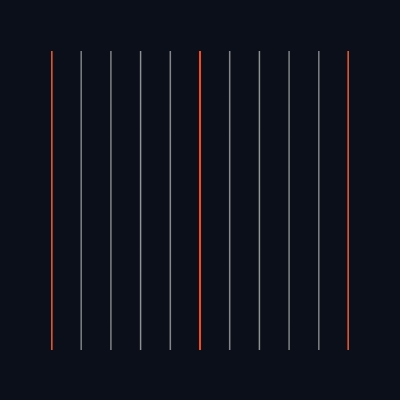

• lines: grid consisting of lines that align along a single world axis. You specify this axis by providing either x, y or z to the axis property.
• circular: grid formed of concentric circles. It includes a maxRadius property that sets the maximum growth extent for the grid. A value of 0 removes this limit, allowing the grid to occupy the entire geometry, even if it results in incomplete circles.

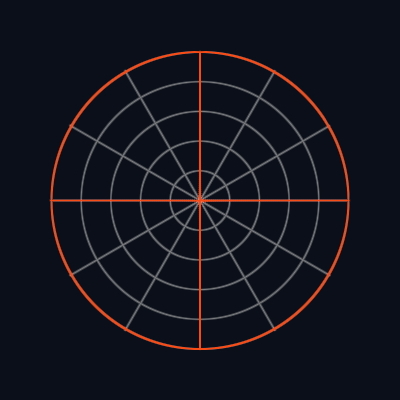

• polar: similar to the circular type, but it also features lines that subdivide the concentric circles. It too has a maxRadius property. Additionally, it has two properties for specifying dividers: cellDivider and sectionDivider. These determine how many lines will segment the circle into various sectors. For example, 2 lines result in 4 segments at 90° each, while 6 lines create 12 sectors at 30° apiece.

Grid	Lines	Circular	Polar

Cells and Sections

Grid is split into cells and sections. Cell is meant to represent the smallest units on your grid, whereas section is a group of cells. You can adjust the size of the grid by changing the cellSize and sectionSize parameters. Size is in Three world units, so for example a mesh with BoxGeometry(1,1,1) will fit perfectly into a size 1 cell. By default a cell is 1 unit and a section 10, which means that a grid of 10x10 cells will be outlined with a section line.

Lines

You can adjust the color and thickness of cell and section lines with cellColor, cellThickness, sectionColor, sectionThickness.

Grid size and fading

The <Grid> component is a THREE.Mesh with a PlaneGeometry attached to it. The gridSize parameter defines the size of the PlaneGeometry. You can extend the grid into infinity if you set the infiniteGrid parameter to true. Changing fadeDistance sets how far from the camera position the grid begins to fade by having its alpha reduced. fadeStrength determines how fast it happens (exponent). fadeStrength = 0 means that there is no fading (not recommended for large grids). You can change the fading point of origin to not be the camera position but a custom point by setting fadeOrigin.

Custom geometry

You have the option to insert your own custom geometry into the <Grid/> slot. The preceding example demonstrates this by showcasing a preview of a terrain-like geometry generated using Perlin noise.

<Grid>
  <T.BoxGeometry />
</Grid>

Follow camera

Setting followCamera to true applies a transform that moves the grid to the camera’s position on the chosen plane.

Component Signature

<Grid> extends < T . Mesh > and supports all its props, snippets, bindings and events.

Props

name

type

required

default

description

---

axis

'x' | 'y' | 'z'

no

'x'

'line' only. Designates the world axis along which the line will be oriented.

---

cellColor

ColorRepresentation

no

'#000000'

---

cellDividers

number

no

6

'polar' only. How many lines will divide the polar grid. Specifies the number of lines that will subdivide the polar grid. For instance, 2 dividers will quarter the grid into 4 sections of 90° each, while 6 dividers will divide the grid into 12 segments, each measuring 30°.

---

cellSize

number

no

1

---

cellThickness

number

no

1

---

fadeDistance

number

no

100

---

fadeOrigin

Vector3

no

undefined

Set a custom fading point of origin. The current camera position will be used if unset.

---

fadeStrength

number

no

1

---

followCamera

boolean

no

false

---

gridSize

number | [number, number]

no

[20,20]

---

infiniteGrid

boolean

no

false

---

maxRadius

number

no

0

'circular' and 'polar' only. 0 removes the constraint.

---

plane

'xz' | 'xy' | 'zy'

no

'xz'

---

sectionColor

ColorRepresentation

no

'#0000ee'

---

sectionDividers

number

no

2

'polar' only. Specifies the number of lines that will subdivide the polar grid. For instance, 2 dividers will quarter the grid into 4 sections of 90° each, while 6 dividers will divide the grid into 12 segments, each measuring 30°.

---

sectionSize

number

no

10

---

sectionThickness

number

no

2

---

type

'grid' | 'lines' | 'circular' | 'polar'

no

'grid'
